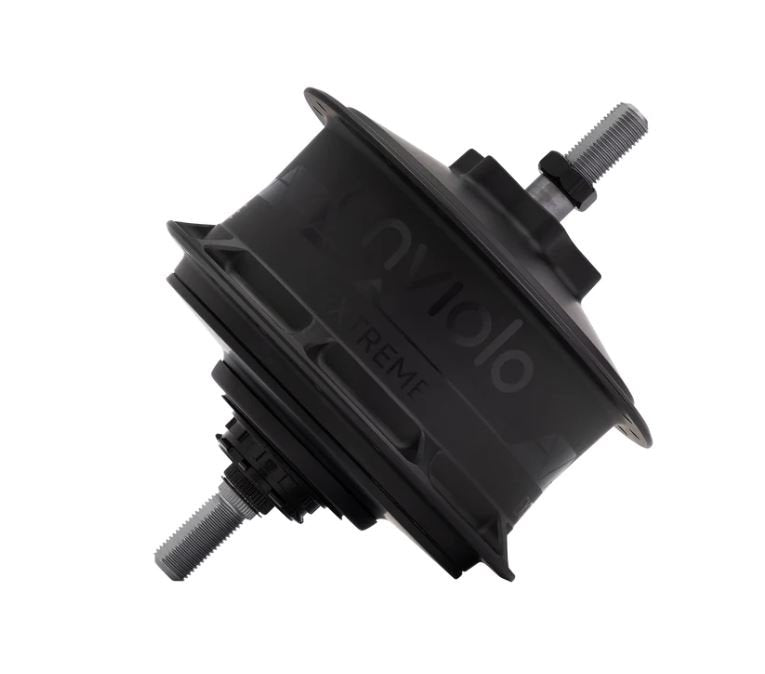

Enviolo Extreme Hub
Enviolo Extreme Hub
The Enviolo Extreme CVP hub, as featured in the Cake Åik cargo e-bike, is a premium stepless shifting solution engineered for professional-grade electric transport. With a 380% gear range and the ability to handle up to 100 Nm of torque, this hub is made for demanding environments, from last-mile logistics to industrial fleet use.
Trusted by brands like Cake, Urban Arrow, Butchers & Bicycles, and VELO DE VILLE, the Enviolo Extreme offers seamless gear changes at standstill or under full load—ensuring optimal cadence and comfort no matter the terrain or cargo.
Technical Specifications:
-
Model: Enviolo Extreme hub
-
Gear range: 380% (0.5–1.9)
-
Max torque: 100 Nm
-
System weight (GVW): Up to 300 kg
-
Axle type: 135 mm solid axle (M12 x 1.25)
-
Chainline: 48.5 mm
-
Spoke interface: 36h, supports 2.3–2.6 mm spokes
-
Brake mount: 6-bolt disc, up to 223 mm rotor
-
Drive types:
-
Chain (3/32" or 1/8", 16–22T)
-
Gates CDX Belt (22–26T)
-
-
IP rating: Hub IP65 / Freewheel IP54
-
Temperature range: –20°C to +48°C
-
Weight: 2.43 kg
-
EAN: 0817088023339
Included
-
Rear wheel: 20" rim (Cake 08) with Enviolo Extreme hub pre-installed
-
Front wheel: Matching 20"
